American & Efird (A&E) is a global leader in denim threads manufacturing. With over a century of experience in industrial threads , they come out with number of technical bulletins to help and guide denim garment manufacturers to optimize seam performance in denim stitching so that not only rejections due to stitching are minimized but also the life of the garment is extended with better stitching.
Here are some recommendations from A & E to optimize seam performance.
Denim Jeans – Optimizing Seam Performance
Selecting the proper thread for denim garments is very important to minimize sewing and seam performance issues. There is an old saying that:
Thread only makes up a small percent of the cost of the finished product … but shares 50% of the seam responsibility.
A typical pair of adult size jeans will have from 200 to 250 yards of thread in them depending on the seam construction. Most major jean manufacturers have experimented with different thread types to reduce cost but most have found that corespun threads give the best overall
performance. Most jean manufacturers put their products through various wash processes after manufacturing and some of these processes can be very harsh. The cost of these wash processes can be from $.75 to $3.00 per jean or more depending on the chemicals, stones, enzymes and process time required. The amount of thread used in a jean typically costs between $.25 and $.30 while the wash-process can cost up to $3.00 per jean.
The thread must be able to withstand all of these processes … and hold the seams together for the life of the garment.
When you talk about sewing denim, there are four key issues that need to be considered:
1) What is the weight of denim fabric?
2) How large topstitching thread is required?
3) What finishing procedures will the jeans be subjected to?
4) What quality issues need to be addressed?
With these questions answered, you will be able to produce jeans that meet the requirements for today’s huge variety in Jeanswear. From a basic 5-Pocket Jean to the most creative pair of High-Fashion Jeans, your sewing plant can produce the quality for each.
The thread of choice used by most quality denim garment manufacturers for topstitching and stress seams include corespun threads ie
- Cotton wrapped Polyester Core – For example D-Core® NWT
- Poly wrapped Polyester Core – For example Perma Core® NWT
What Are Corespun Sewing Threads?
Core threads are made by spinning a wrapped of cotton or polyester staple around a bundle of continuous filament polyester fibers to form a yarn and then two or more of these yarns are twisted together to form a corespun thread. Generally the core makes up approximately 60% of the thread construction contributing to a more uniform and higher tenacity sewing thread as compared to a 100% spun polyester sewing thread. For example, a T-60 PW Core thread will have a breaking strength of approximately 8.7 lbs. while a T-60 Spun Polyester thread will have a breaking strength a little over 5 lbs.

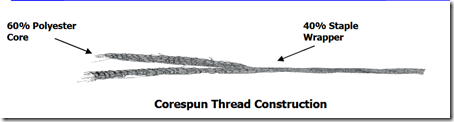

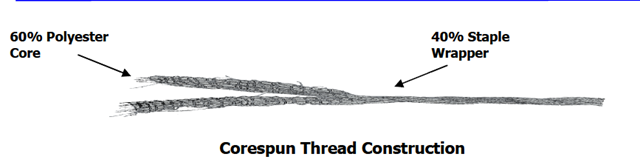

Corespun Thread Construction
Cotton wrapped core spun threads have very good needle heat resistance. When wrapped with a polyester wrapper, core spun threads have excellent chemical resistance and color fastness. The fibrous surface on either thread reduces the shiny look and also contributes to superior frictional characteristics as the thread passes through the sewing machine.
- Some designers prefer the thread to wash-down during the wash processes and if this is the case, you would select a Cotton-Wrapped Core thread . Degrees of color fastness will vary with particular shades. With this known factor, a user of Cotton-Wrapped Core should look at all wash codes to ensure that the thread color will be appropriately maintained. Also recommended is doing pre-production wash testing to assure that the wash-down look will
- On the other hand, many jean designers want the thread to maintain its color for the life of the garment and offer a signature look. If color fastness is key, then select a Polyester-Wrapped Core thread . Also with Polyester Wrapped products you have the option of picking the desired color from a color palette to obtain the look you want after the wash procedures. This will allow greater shade control, which will be maintained after continual washes by the consumer. Doing pre-production wash testing prior to going into production is still recommended.
Cotton-Wrapped and Polyester Wrapped Core threads offer excellent abrasion resistance to the varied wash codes the denim garments may be exposed to.
Both of these thread types are available in sizes to meet the variety of denim fabric weights. From a Tex 40 to a Tex 120, you can achieve the desired performance throughout the sewing floor and after the varied finishing processes. Utilize the correct size to obtain the desired look while maintaining seam integrity. Some basic sizes utilized in today’s denim manufacturing are:
|Needle Thread||Looper Thread||Serging||Application|
|Tex 150 – T-300||Tex 80 or Tex 60||T-40 or T-60||Extra Bold appearance|
|Tex 120 to T135||Tex 80 or Tex 60||T-40 or T-60||Bold appearance
|Tex 80 or Tex 105||Tex 60 or Tex 40||T-40 or T-60||Normal|
|Tex 60||Tex 60 or Tex 40||T-40|
|Tex 40||Tex 40 *||T-40|
*8 oz denim usage or Chino twills

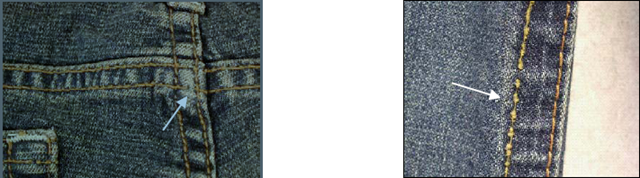

Cut or Broken Stitches
Most manufacturers of denim and twill garments that pre-wash garments after they are assembled have experienced problems with excessive “cut” or “broken” stitches. In fact many manufacturers have found this problem to be significant reaching in excess of 30 to 40% of the
products being sewn.
Many times this problem occurs when a previously sewn stitch-line is crossed during a subsequent sewing operation and the needle damages the thread in the seam. Broken stitches can also occur when there is excessive abrasion or chemical degradation of the thread during the wash process. Let’s now discuss what are some of the solutions to these problems.
Solutions To Cut Or Broken Stitches
- Many manufacturers have significantly reduced the number of “cut” and “broken” stitches by using high-performance sewing threads on stress seams. Make sure the correct thread type and size are being used in both the needle and bottom (looper) positions. Core threads that have a continuous filament polyester core are much more resistant to cutting and degradation than 100% spun polyester thread constructions.
- Usually the larger the thread size, the more resistant the thread is to being cut by the needle or failure due to chemical degradation or heat. Because of this many manufacturers have increased the thread size on critical operations including waistbanding, seat seaming, etc. Typical thread sizes used on heavy denim run from T-105 down to T-60 depending on the desired look. Typical thread sizes used on twills used in the manufacturing of chino pants run from T-40 to T-60.
- Inspect the needle point at regular intervals and check for sharp or burred points. If the needle point is damaged, replace the needle. Many companies have found that it is best just to replace the needle on critical operations once or twice a day.
- Check for signs of needle heat or excessive heat exposure during laundering that may be melting the thread. Usually if the thread has been damaged by heat, the thread will have a hard melted surface that can be felt or seen using a magnifying glass. If you suspect
that needle heat is a problem, try using a special coated needle or needle coolers to reduce needle heat. Make sure the thread has the proper type and amount of lube. Most major thread suppliers have developed high-performance lubricants to minimize heat
damage on polyester threads. A cotton wrapped core thread may be more resistant than a 100% polyester thread.
- Use proper thread tensions. Make sure the stitch on the seam line is loose and able to move if it is hit by the needle. Tight machine thread tensions will NOT allow proper flexibility in the stitch and will increase “cut-stitch” damage. Generally on chainstitch seams, the ideal stitch balance is when the needle loop on the underside of the seam lays over half way to the next needle penetration. This can be checked by unraveling the looper thread and observing the needle thread on the underside of the seam or checking the ratio of needle to looper thread. It is normally recommended that this ratio be
approximately 60% needle thread to 40% looper thread consumed.
- Check the edges of the needle plate and presser foot needle holes to make sure they do not have any sharp edges or burrs that can damage the thread during sewing. Properly remove all burred or sharp surfaces making sure not to oversize the needle holes which
can lead to excessive “flagging”.
- Inspect the feed dog teeth directly behind the needle holes and make sure they are not sharp. If required, buff the feed dog teeth with a wire wheel or with a stone if they appear to be sharp. Be careful not to remove too much of the feed dog teeth that could hinder the feeding or interfere with chaining.
- Use the minimum amount of presser foot pressure to get a uniform stitch length. Excessive presser foot pressure can cause the thread to be damaged when it is compressed against a relatively sharp surface. On some machines it is sometimes necessary to use a presser spring with fewer coils per inch to give more consistent pressure even when crossing heavy seams.
- The proper type and capacity folder should be used to prevent stalling when crossing heavy seams. Feed stalling will increase the chances of “cut” stitches.
DAMAGE DURING PRE-WASHING
Sometimes partially damaged thread from the sewing operation will fail during stone washing or other processes. Most of the time this damage is difficult to detect but should be investigated using the suggestions mentioned on the previous pages. On the other hand, many seams are damaged during the wash processes due to excessive abrasion, chemical degradation, and heat degradation.
To reduce damage to the thread in the seams, the following is suggested:
- Make sure the correct thread type, construction and size is being used. For example, the product Perma Core® NWT.
- Work with your laundry to develop standards with regard to the type and amount of chemicals, rocks, cycle times and temperatures that are being used in both the washing and drying processes. You should monitor and properly test the following:
a) Any changes of rocks and chemicals from one vendor to another
b) Changes of cycle times
c) Changes in temperature during the washing or drying cycles
- Evaluate the best way the garment should be processed, whether it should be inside-out or right-side-out, the fly buttoned or not buttoned, etc. Care should be taken if the garments are turned right-side-out when they are still wet. Extra moisture in the garments can cause excessive whipping of the bottom hem seam causing excessive
