Indigo Rope Dyeing : Some Important Technical Considerations

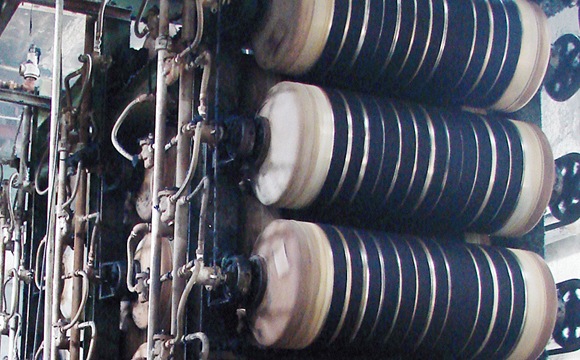

rope dyeing

Rope Dyeing is considered a superior dyeing technology where the dyeing uniformity achieved is better than other Indigo Dyeing technologies like Slasher Dyeing.
However, Rope Dyeing is a also a more difficult dyeing technology. One needs to master its nitty gritties to get the best out of the system.

I , recently came across a very well written article on Rope Dyeing and thought it appropriate to share here.  The article mentions in great details the technical points to be kept in consideration while using Rope Dyeing..

Read on only if you are very technically oriented !

Notes on Yarn for Rope Dyeing

* Yarn faces stress and stretch at ball warping, rope dyeing, rebeaming, sizing and loom shed so elongation of yarn should be more than stretch at (ball warping + Robe Dyeing+ Rebeaming + Sizing )= (2-3%) + Loom shed (about 5%)

* Tension at Ball warping should be less by 7-8% of single yarn strength.

* Strength CV should be within limits as it may give rise to weak points

* The tendency of yarn to migrate at rope dyeing can be countered by less micronaire of yarn ( should be around 3.8-4.2)

* More dropping of short fibers at long chain beaming is good

*The sensitivity settings for neps is set at +280 for rotor spun yarn and not +200 as in case of ring spun yarn. The reason for this is that the structure of rotor spun yarn is intrinsically different from that of conventional ring spun yarn. Neps in rotor yarn tend to be spun into the solid yarn body rather than remaining on the yarn surface, which is typical of ring spun yarns. Although embedded in the yarn core, these neps still represent a short mass defect and will therefore trigger the imperfection counter upon exceeding the preset value. However, compared to neps that are attached to the yarn surface, fully embedded neps are barely perceptible for the human eye. Thus, in order to balance the typical visual appearance of rotor spun yarn with the imperfection counts, +280 sensitivity setting is a common convention for rotor spun yarns.

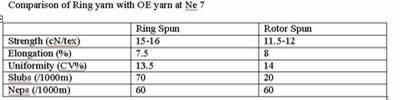

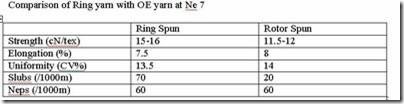

Comparison of Ring Yarn with OE yarn at Ne 7

oe yarn ring yarn for denim

1.

Process of dyeing of sulphur color in Indigo Dyeing Range:

1st Wash tank: mercerisation by taking 22% NaOH ie. 250 gpl
2nd Wash Tank: Hot Wash
3rd Wash Tank: Cold Wash
2. In 1st and 2nd dye bath take sulphur color 6-8% on the weight of the yarn sheet. Temperature 90 deg. cel. The solution contains the following:
1. solubalised sulphur color: 150 gpl
2. Na2S–> reducing agent: It is added to increase its reducing power
3. Caustinc Soda –> 10 gpl–> reducing agent
4. Wetting agent–> 2gpl
5. Antioxident Sulphide ( Glucose paste–> 5gpl). This is added to prevent the oxidation of of Sulphide solution. It will always remain in reduced form
( Alos if the shade is slightly greyish, one can add tiny tinge of sulpher blue–> 20gpl)
in III, IV and V dye bath–> cold wash
in 6th dye bath. We take H2O2(30%)+Acetic Acid(2:1 by weight). H2O2 acts as an oxidising agent. But as it acts on neutral pH (=7) and after cold bath the solution is slightly alkaline, to make it neutral wil add acetic acid. Acs in alkaline pH, oxidising action of H2O2 will be similar to the bleaching action, which may cause tendering in the fabric.
7th and 8th Dye Bath: Cold Wash
Wash Box Number 4: Here washing is done with detergent and soda ash at 60-70 deg.c
5th and 6th Wash Box: Hot Wash
7th wash Box: Here softner is added at 25 gpl. It is cationic softener with pH 4.5 to 6.5. As during oxidation of sulphur, strength is reduced by 10%. On a yarn sulphur is of two types :
1. Free Sulphur
2. Reacted Sulphur.
The free sulphur will react with moisture in the atmosphere to form:
H2O + S –> H2SO4
Which tenders the yarn. Now at acidic pH reaction is much faster. So we add only a small amount of softener (25 gpl) as against that in indigo which is 100gpl.
3rd Point
Over all during sulphur dyeing and storing, the yarn strength is reduced by 15% as compared to Indigo.
4th point
If ball formation takes place of sulphur dyed warp at loom shed, then we can taken in 4th dye bath little Na2S+Caustic to reduce the free sulphur.

Technical Considerations in Rope Dyeing for Indigo dyed Denim.

The passage of yarn in rope dyeing is as follows:
Pre-scouring –>hot wash–>cold wash –> Dye baths–> hot wash–>cold wash–> application of softener
lets discuss these processes one by one:
Pre-scouring
1. The objectives of pre-scouring are the removal of wax content from cotton, removal of trapped air from cotton yarn and Making yarn wet
2. This is done at 90 o C
3. We use the following ingredients at pre-scouring stage:
Caustic Soda: Its quantity depends upon the quality of cotton fibres used in the mixing. Generally we take 2-4% of caustic soda. It removes the wax by the action of soapanification.
Wetting agent: It is anionic in nature
Sequestering Agent: Even with the use of water softening, it is very difficult to find the desired softness in water ( about 2-3 ppm) . So we use the agent to make the water soft.
4. Why Trapped Air should be removed. The reason for this can be understood as follows:
In 1 kg of yarn, there is approximately 2 litres of air. 1 litre of air decomposes 1.8 litres of Sodium Hydrosulphide. It will cause uneven dyeing and more consumption of Sodium Hydrosulphide ( hydro).
5. Absorbency of yarn may be checked after scouring.
Hot wash
As some caustic is carried by the yarn after pre-scouring, so hot water is given at 70-800C. If this is not done, this yarn will go into the dye-bath which will change the pH of the dye-bath.
Cold Wash
After hot wash, yarn temperature is more. To bring it back to its room temperature, cold wash is given to it.
INDIGO DYEING

1. Indigo is not a perfect vat color. It may be called a trash vat color. The constant of substantivity for other colors is 30, for indigo it is only 2.7. So there is a need of 5 to 6 dye baths and make the use of multi-dip and multi-nip facility to increase the penetration.
2. The dyeing is done at room temperature as indigo belongs to Ik class of vat dyes, where dyeing is done at room temperature and oxidation is done by air only and not by chemicals. If oxidizing agents are used, they will cause stripping of colors.
3. Indigo is not soluble in water. So it is reduced with Sodium Hydrosulphide. Then caustic soda is added to make sodium salt of vat colors to make it soluble. To reduce 1 kg of Indigo, 700 gms of sodium hydrosulphide is required. However some extra SHS needs to be taken to avoid some decomposition of SHS.
Practically it is prepared in the following sequence
-Take indigo
-Add caustic
-Then reducing agent
4. When caustic is added to indigo, it is an exothermic reaction. It is allowed to cool down, then before sending it to feeder, sodium hydro-sulphide is added. Reducing agent is not added first as it will be decomposed first, so consumption of it will increase. It is also not advisable to take solubalised vat, as offered by some companies due to the following reasons:
a. If it is used after 6 months, there will be a decomposition of sod. Hydrosulphide. It will become partially soluble. Then to make it soluble again, more SHS has to be added.
b. Transportation is difficult
c. Cost is more
5. Feeding System
Rat of flow of yarn is given by
((No of ropes x no of ends x speed of machine)/ count x 1.693 x 1000)
in kg of yarn / minute
So we can determine the rate of feed of indigo. It is very important that replenishment of indigo is there as any variation will result in the change of shade and also if level is more, there is a problem of over-flow.
6. If total capacity of dye bath for example is 15000 litres, then circulation must be 3 times the volume. If it is less then there are 100% chances of getting a lighter shade.
7. Core and ring dyeing effect
This effect is obtained by multidip-multinip facility
8. pH of the Dye bath should be kept in between 10.5-11.5. At this pH , sodium salt of Indigo is mono phenolic form. At this form, the strike rate of dye is very high. So after washing, there will be a better dye effect. At pH 11.5 to 11.7, at this affinity is less, so dye effect will be less prominent.
pH is controlled by the addition of caustic soda.
9. Testing of Hydro
TOTAL HYDRO
We take 10 ml of indio with SHS in 30-35 ml of water. It is set for one minute and shaken. As air will decompose SHS. So vacuum created will fetch the water from above. If 3 ml of water is required, then concentration of hydro is 3 gpl. As a thumb rule, concentration of total hydro should be min. 1.5 gpl.
REDUCED HYDRO
It is the hydro that is used for the reduction of Indigo. It should be around 0.7 ( 1000 kg of Indigo needs 700 kg of hydro to reduce it). For testing we take 10 ml of dye solution and 30 ml of water and 5-6 drops of 40% formaldehyde and shake it for one minute. The water that goes gives the readings of the reduced hydro.
Total Hydro- Reduced Hydro = free hydro
If Total hydro is min. 1.5 gm/lit. then free hydro must be min. 0.5 gms/ litre which acts as buffer
10. Also hydro reduction capacity is measured by mV meter which measures the Redox Potential.
It should be around 760-800
Through the day, the redox potential should be +- 20 mV of the norm. If it is more then the process control is a failure.
Caustic–> It is around 0.4 to 0.5 times the hydro used.
Washing
Rubbing fastness of indigo is very important. On a scale of (1-4), it is 2. Washing is done to improve the rubbing fastness.
Wash at 60 deg.–> Wash at 60 deg.–> Wash at room temperature–> wash with softener
Why Softener:
1. The rope is going to be opened at Long Chain Beamer. It the softener is not used, opening will be hampered.
2. It is generally 1.2% of the weight of the yarn. It is a cationic softener. It is always having pH in the range of 4 to 55. Softening is done at room temperature. If high temperature is used there is always some chance of tendering of yarn.
3. Concept of Buffer pH is given by Virkler USA, they say by addition of this, there is 40% less consumption of Indigo for same shade depth.
4. Metering Consumption
If solution is of 900 litres
10% Indigo–>90 litres
Hydro–> 90*.7 = 63 kg
Caustic–> 63*0.445= 28 kg.

It belongs to a VAT class of dyes. It has a dark blue color wit a bronze lustre. It belongs to KI class of dyes. In this class, dyeing is done at cold and air oxidation is done to reoxidise the dye. It can be applied on both cellulosic and protein fibres. For protein fibres, a weaker alkaline solution is used. It can be reduced by NaOH and Na2SO4 in water to give monophenolate and biphenolate ions as complete solution. Reduced form of Indigo is called leuco indigo. Leuco has got low affinity for cellulosic fibres. Dye take up can be improved by:
1. Either mercerisation of cellulosic fibres before by dyeing
2. or by adopting multidip, squeeze and airing process, so that dye is coated on the fibre layer by layer
Indigo can be further developed into Halogenated derivatives and sulphonated derivatives. Halogenated derivatives give better fastness properties and brighter shades, whereas sulphonated derivatives gives a soluble blue dye, good dye and is applicable on protein fibres.
reaction :
Image 1
Although indigo is a vat dye, it can be regarded as a ‘trash’ dye, the dyeing and fastness properties are in no way comparable to other class of vat dyes. It is due to these properties, that make it an excellent dye for denim. The on tone fading and the bleach down properties of indigo blue has generated a lot of denim jeans fashions like stone, ice faded looks, etc. These special effects cannot be simulated by the other classes of dyes.
During Preparatiuon of stock vat, the following points must be remembered:
1. Vatting temperture should be as close to room temperature as possible.
2. Stirring should be minumum, unnecessary stirring affects the stability of reduced vat.
3. Volume of the reduced vat should be kept constant for every stock vat batch, as the constant volume will ensure a constant replenishing amount.
For rope dyeing system, with chemical replenishment
with Stock replenishment
Indigo: NaOH: Na2SO4 :: 1:0.8:0.8
Without stock replenishment
indigo: NaOH: Na2SO4:: 1:1:1.2
Chemical Feeding
NaOH: Na2SO4: : 1: 1.2-1.6
ie. for approximately 60 gpl of NaOH–> 120 gpl of hydro is required

Indigo Dyeing process control

  1. Concentration of Hydrosulphite
    It is measured by vatometer. It should be from 1.5 gpl to 2.5gpl , or by redox potential of dye bath which should be from -730 mV to -860 mV.
    2. Caustic Soda or pH value
    Should be from 11.5-12.5
    3. Dye concentration in Dye bath
    it is measured by spectrophotometer. It should be in g/l
    Guidelines
    High Indigo Concentration –> Shade is greener and lighter
    Low Indigo Concentration –> Shade is dull and Red.
    High pH or Caustic Concentration –> Redder and lighter
    Low pH or caustic concentration –> greener and darker
    Dipping Time
    Longer the dipping time, better will be the penetration and lesser will be the ring dyeing effect. It varies from 15-22 seconds.
    Squeeze Pressure
    High pressure will lead to lower wet pick up and result in lesser color and better penetration. At rope dyeing, squeeze pressure is 5-10 tonnes, ie. wet pick up is as low as 60%. Hardness of squeeze roller is about 70-75 deg. shores. It sqeeze rolls are too hard then there are chances of slippage and uneven yarn tension.. If squeeze rollers are too soft then shading will occur. Surface of the squeeze rolls should be ground twice a year.
    Airing Time
    It should be 60-75 seconds. Longer airing time results in high tension on the yarn and subsequent processes will become difficult.
    Drying
    Insufficient or unevenly dried yarns will result in poor rebeaming
    Calculation of Replenishing Dye feed/min
    Conc. of stock vat is g/l= 90
    range speed in yards/min=25
    count = 7s
    totoal ends = 4100
    Wt of yarn dyed /min= (4100*25*1000)/(7*840*202)= 7924 gms
    shade desired = 2%
    Amount of dye to be replenished/min= 158.5 gms
    Effect of pH
    At pH of 10.5 to 11.5, there will be formation of more monophenolate ions, which lead to higher color yield, as strike rate of the dye to the yarn bundle is very high, and wash down activities will be very good.
    At pH higher than this, dye penetration will be less and wash down characteristics are also poor.
    Testing
    1. Alkalanity in Dye Bath Liquor
    Pipet 10.0 ml of vat liquor into 100ml of distilled water in a 150 ml beaker. place under continuous agitation and insert the electrodes of a pH meter caliberated at pH 7.0 with standard buffer solution.
    Titrate with tenth normal HCl ( 0.1 HCl) to pH 7.0 (ml = A)
    calculate
    g/l of NaOH = A *0.40
    2. Hydro in Dye bath Liquor
    Add 2 ml of 37% HCHO to 150 ml beaker. Add 2 ml of dye range liquor . Add 6 ml of 25% glacial acetic acid solution prepared by diluting 1 part acid with 3 parts water. Add 2 ml of starch/KI indicator. Add ml of water. Titrate with 0.046 N ( prepared by diluting 460 ml of 0.1 N Iodine to one liter ) solution until the color changes from emarald green to bluish purple.
    G/l of hydro= mo fo 0.046N of Iodine
    Importance of High Concentration of Free Hydrosulphite
    The clearest shades with minimum reddish streaks are observed at by relatively high conc. of hydrosulphite. On the other side, with lack of hydrosulphite, the leuco indigo is less dissolved and thereby adheres to a greater extent to the fibres. With lack of hydrosulphite furthermore, the amount of unreduced dyestuff by oxidation at the upper level of the liquor and through activiation of unfixed dyestuff, gets separated from the fibrous material would constantly rise as the reducing agent for creating leucoform would be missing. Under these circumstances a reddish bronze like shade results due to dispersion of not reduced dyestuff in the yarn. The min. proportion of hydrosulphite should be around 1.3 to 1.5 gpl in case of rope dyeing and 3-4 gpl in case of sheet dyeing. Also to avoid the lack of hydrosulphite or Indigo at certain places in the immersion, vat, the whole quantity of the liquor should be circulated 2-3 times every hour.
    Reaction Time
    At very short reaction time, an adequate liquor exchange ( i.e. the amount of chemicals consumed and replaced by fresh addition of reduced indigo) is not assured. This has a negative influence on dyeing and depth of dye penetration. In addition to this the time available for diffusion of dyestuff until oxidation commences is too short. To ensure an even and good depth of dye penetration by dyeing in several passages, the reaction time should be 20-30 sec. for each vat (eg. at a speed of 20m/min for a reaciton time of 10 seconds, the immersion path should be maximum 3.3 meters).
    A reaction time exceeding 60 seconds should be avoided as the amount of dyestuff again get reduced and released may again supersede that of additionally take up dye stuff, resulting in higher shades.
    Softening Agent: 8 g/lit
    Drying: Rest humidity should be 30% and then sized.
    Addition of chemicals
    1. Red Tinge: reduce addition of NaOH, increase slightly Na2S2O3
    2. Darkish Red: increase Hydro
    3. Light Greenish: decrease Hydro
    4. Dark Green: Increase Caustic

Indigo dyeing calculations

For 12 ropes, at 24 m/min, of 344 ends of 14000 m length of 7s count.
wt of yarn = (12*344*14000*100*453.6)/(7*840*36*2.54*1000) kg= 5000 kg
at 24 m/min, a lot of 14000 m will be completed in 14000/24 = 583.3 min
at 1.8% shade
100 kg of yarn needs–> 1.8 kg of Indigo
5000 kg of yarn needs –> 90 kg of dye
at 100 gpl
100 gms of dye = 1 lit of solution
90 kg of dye = 900 litres
900 litres should be completed in 583.3 min
1 litre would be completed in = 583.3/900= 38.8 seconds
so flow rate will be 38.8 seconds / litre
Similarly flow rate of caustic and hydro can be determined
Hydro is taken around 100 gpl
caustic is taken around 90 to 100 gpl

Indigo preparation sequence

In a tank of 1000 liters:
a. take 400 litres of water (soft)
b. add setamol ws–> 4 g/l (stirring) ( dispersing solution)
c. Add 100 kg of Indigo ( at 1.8 % shade -see the indigo calculations- stirring)
d. add caustic soda –> stirring ( for solubilising and pH)
e. allow to cool it for 2/3 hours
f. Add hydrosulphide ( As reducing agent)
g. Make the solution to 1000 l by adding water.
If pH is fluctuating, if it is > 11.7 then hydro is added (2-3 kg), if (<11.2) then caustic is added.
For 100 kg of Indigo,
Caustic Required= 90 kg
Hydro Required= 80 kg

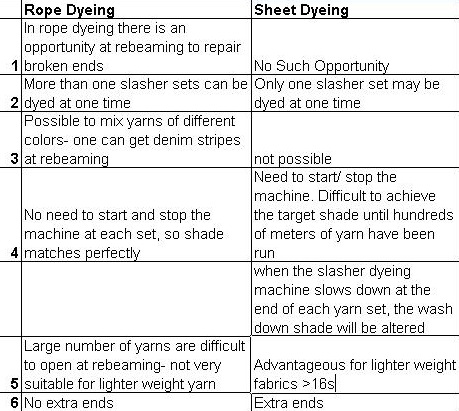

Difference Between Rope Dyeing and Sheet Dyeing

rope dyeing slasher indigo

About the author : M Bilal Tariq has worked as a Deputy General Manager in a reputed Denim Mill in Pakistan . He is a textile Engineering Graduate and also maintains a Denim Blog

  1. Dear Sir,

    It is a fantastic write up the writer and thank you so much for keeping us posted with such mindbogling technical literature.

    I hope I can see some post with same line for Slasher dyeing – sizing for Indigo Dye. It will be helpful for me.

    Regards

  2. Hi Sandeep,
    how are you?
    I have worked for about 20 years in Italy with indigo machines for dye in slasher
    and from about 4 years I work in Asia with machines in rope.
    I have read your technological relationship around the Indigo dye and I’m sorry,
    but I have found some computational errors for the feedings of indigo and I don’t completely agree around some parameters (Dyeng PH and Hydro free), but I have found interesting your detailed exposure.
    Hope to have occasion to talking with you some time and even to meet you.
    Best regards.
    Vincenzo

  3. Hi Vincenzo,
    Thanks for your comments.
    Please feel to suggest corrections wherever you feel .
    Please note that I tried to send you an email but it seems wrong. Send me your email once again at sandeep@denimsandjeans.com and I shall revert to you..

  4. Dear Sir,
    Really very detailed info I appricate your efforts and need to compare various macinary avilable for Indigo dyeing as a student of Textil though I am serving in big textile group from last few years but I like to know more about new techniques and novel Ideas.

    Bye

    Moazzam Malik

  5. @Vincenzo Verdura – Hi Vincenzo , sir am a textile graduate and am dng job in indigo dyeing rang sir i need ur help . This information is very helpful thnxs but plz reply to my mail address i have some questions tht i need to clear

  6. dear sir

    The nfration you have given is all te way excellent. i have so many querries regardig denim yarn dyeing.if u could help me out.
    regards
    m.Najam Iqbal

  7. dear sir
    i am a textile graduate and i have 3years experience in yarn dyeing but now i want to join denim sector.please send me the necessary information regarding denim
    i will be thankful to you for your earlier response
    Thanks & Regards

  8. dear sir i am thankfull to you . because this material will help me in completing my project .may ALLAH bless you

  9. dear sir;
    i have worked in rope dyeing and know ihave been warking in loop tex dyeing for last five year. i want to get information about rope dye and loop tex dye and all dyeing calculation.I

  10. dear sir;i have worked in rope dyeing and know ihave been warking in loop tex dyeing for last five years.i heve been searching to get good job opportunity in dyeing.

  11. Good & guidable to everybody to compare the m\cs,guideline for new begineers of denim industry.
    thanks bilal,
    Rudra Gowda

  12. Dear sir,

    i have been working with denim industry for last 7 year, i want to know that what is rope dying and sheet dying. what is difference between rope dying and sheet dying and how do we calculate the percentage of dye used ofr dying

  13. saya telah bekerja lebih dari 10 tahun dari mulai ball warper lanjut ke rop dye lanjut ke rebemer dan seizing…di sini saya akan berbagi cara menentukan kebutuhan celup sulpur pada mesin rope dye adalah : TE : NE : 1,693 x SPEED x PICUP =….LITR dan banyak lagi mengenai pembuatan warna toping black , bottoming blck ,bttming yellow dan yg basik warna indigo..

  14. guys am making denim indigo topped with sulphur
    wet and dry crcking is really poor for rinse wash can you guys reply reason for this and how can this be improved ?? buyer does not want to lighten the finale shade on the garment

  15. guys am making denim indigo topped with sulphur
    wet and dry crcking is really poor for rinse wash can you guys reply reason for this and how can this be improved ?? buyer does not want to lighten the finale shade on the garment @amit

  16. dear sir

    thanks a lot for valuable information.I am working in a denim factory as a production officer in dyeing & also I am a beginner. Now I need to get all the information elaborately i.e calculations, technical direction, problems & solution of denim dyeing.

    sincerely

    Rajib Hossain

  17. sir, i’m also b.sc in textile engineer.now i’m doing job at envoy textiles ltd. i.e, the first rope dyeing denim plant in Bangladesh.i highly appreciate your importance article regarding rope dyeing technology.

    Ahasan Habib

Your email address will not be published.

Denimsandjeans is a premium denim website dedicated to global denim supply chain since 2007 – covering news, trends, reviews and more. .
